Electrolyte AFT 300 & 500

Previous Product

>> Automatic calibration on alarms
>> High, middle and low QC values provided to adjust linearity
>> R8232 port available
>> Slope and intercept adjustable to ensure accuracy and linearity
>> Electrode maintenance alerts
>> Closed container for both calibrates and waste, which prevents the bio—organic pollution
>> Auto sampler volume: 39 samples

Category: Electrolyte Analyzer

Description

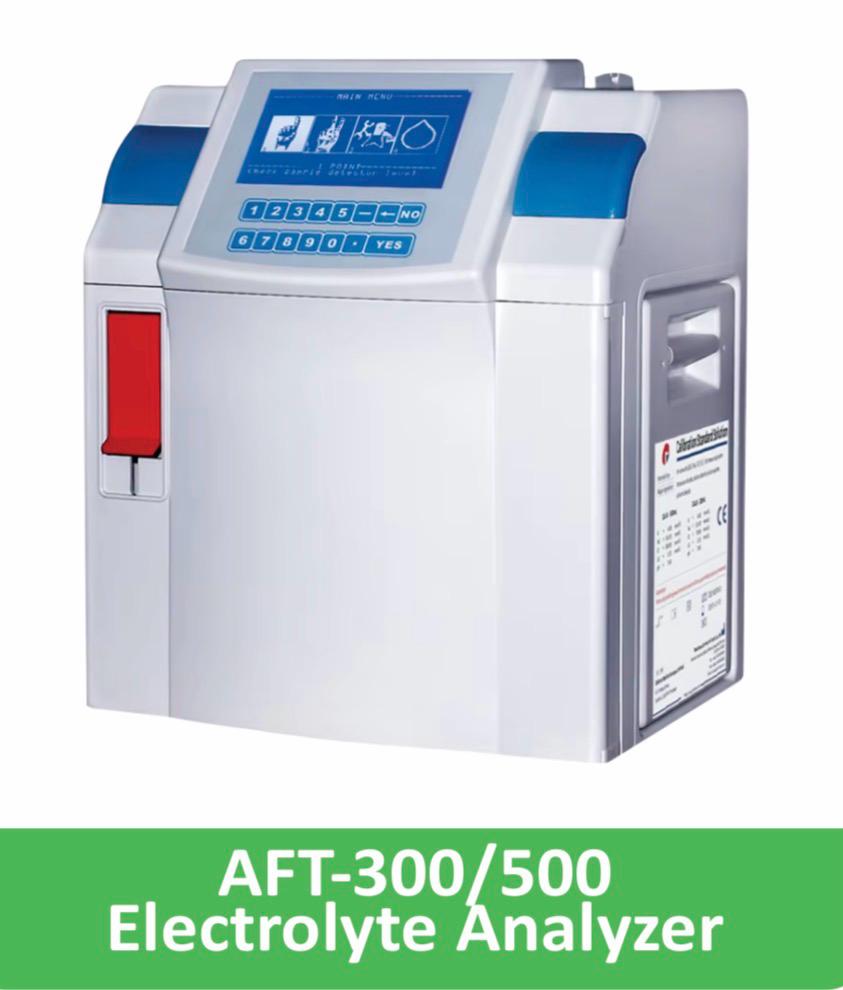

AFT300/AFT500 Electrolytes Analyzer

Sleep mode to save reagent
Rapid test speed: <305econds/test
Min-volume sample consumption: < 65uL
Reagent pack to avoid pollution _
On-Line instructions provided for self problem-solving
>1000 records storage
Automatic one point and two points calibration with additional manual calibration
User-friendly software

Analyzer for any combination of K, Na, Cl”, Ca”, pH

SAMPLE TYPE

Plasma, Serum, Whole Blood, Urine

TEST RANGE AND ACCURACY

Channel	Range	Resolution	CV%
pH	6.00 ~ 9.00	0.01	< 1.0
K+	0.50 ~ 10.00 mmol/L	0.01	< 1.0
Na+	20.0 ~ 200.0 mmol/L	0.1	< 1.0
Cl-	20.0 — 200.0 mmol/L	0.1	< 1.0
Cl++	0.3 ~ 5.0 mmol/L	0.01	≤1.5

WORKING ENVIRONMENT

Item	Specification
Ambient Temperature	5 OC ~ 40OC
Relative Humidity	5.85
Sun Radiation	Avoid direct sunshine
Power Supply	100-240V~50/60Hz

MAIN CHARACTERISTICS

>> Self-test functions with hints to solve problem	>> Automatic calibration on alarms
>> Wide LCD display (240×128)	>> High, middle and low QC values provided to adjust linearity
>> Dot matrix or thermal printer on demand	>> RS232 port available
>> Numeric keypad for convenient operations	>> Slope and intercept adjustable to ensure accuracy and linearity
>> Randomly choose any combination of K, Na, Cl, Ca, pH	>> Electrode maintenance alerts
>> High efficient cleaning procedures, best for fatty samples	>> Closed container for both calibrates and waste, which prevents the bio–organic pollution
	>> Auto sampler volume: 39 samples
